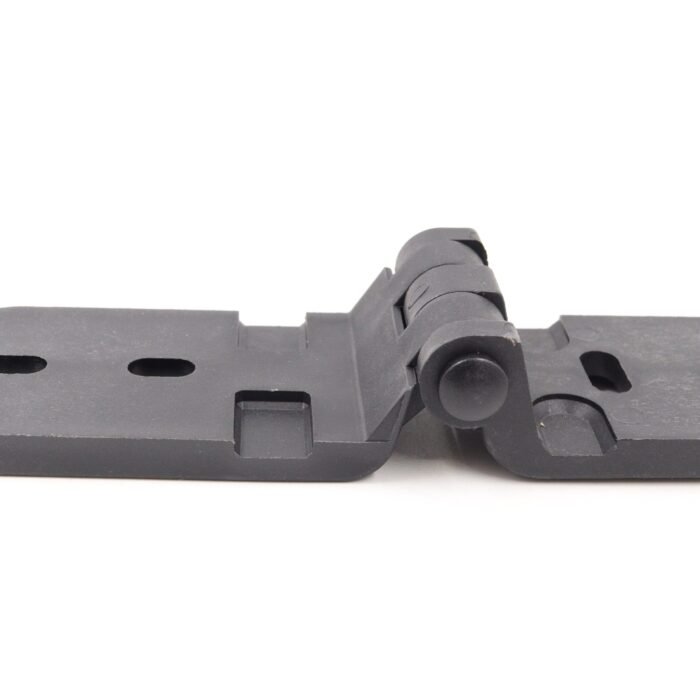

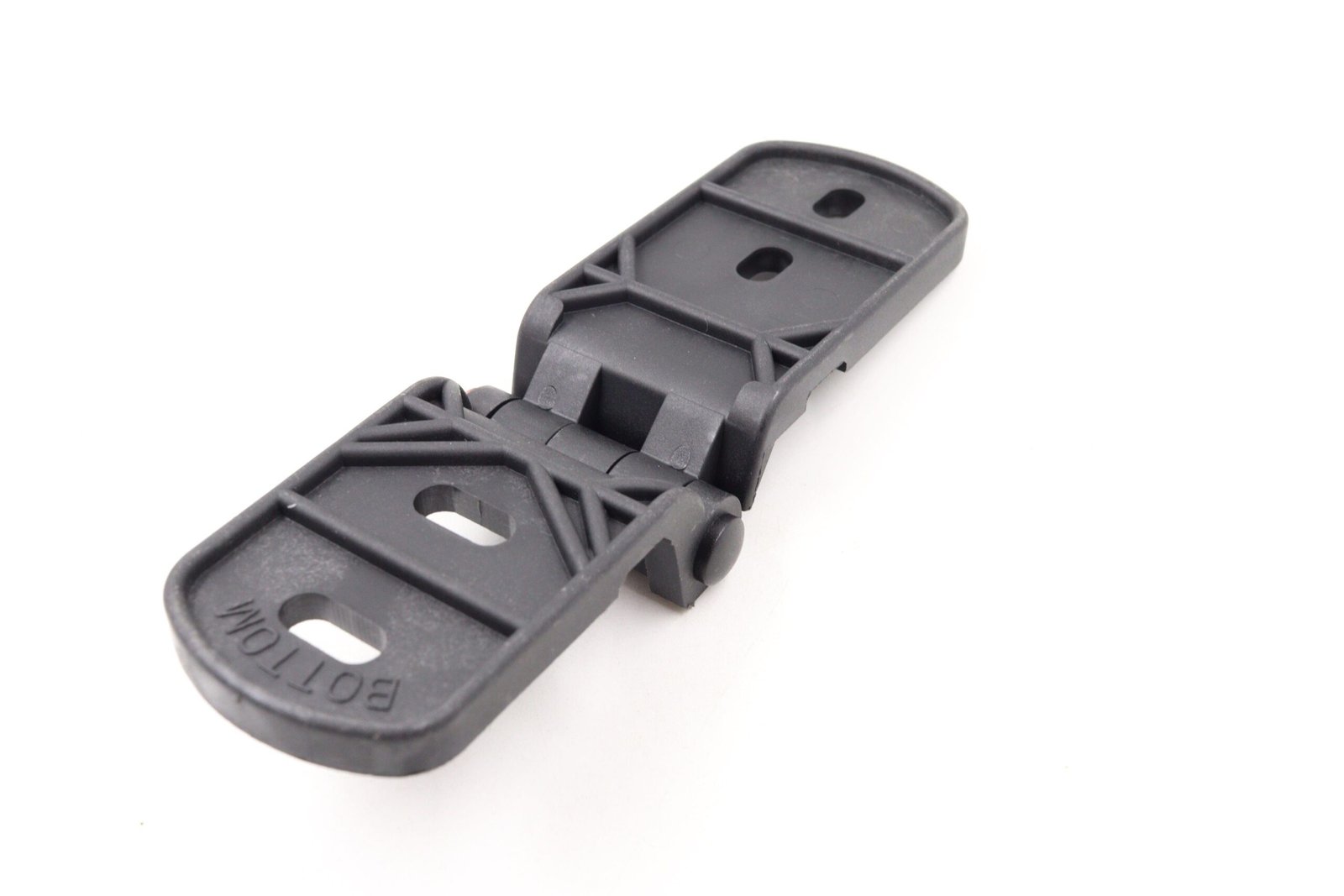

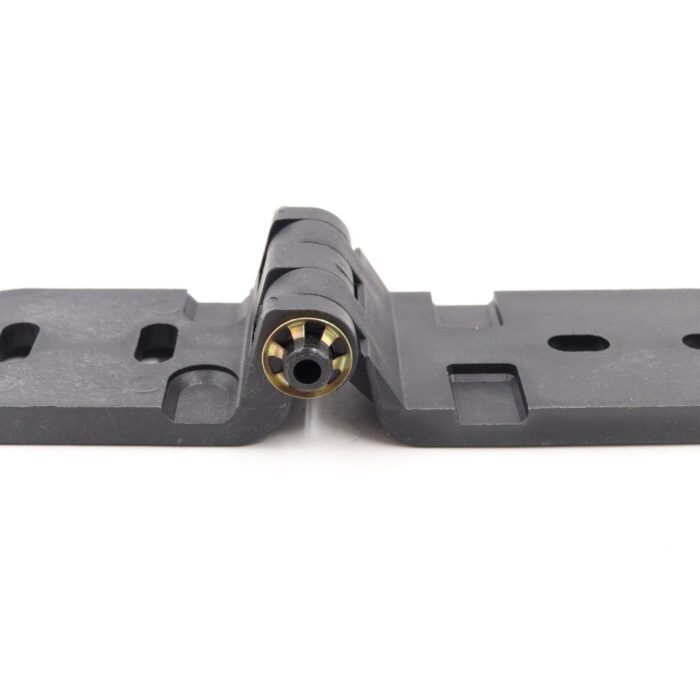

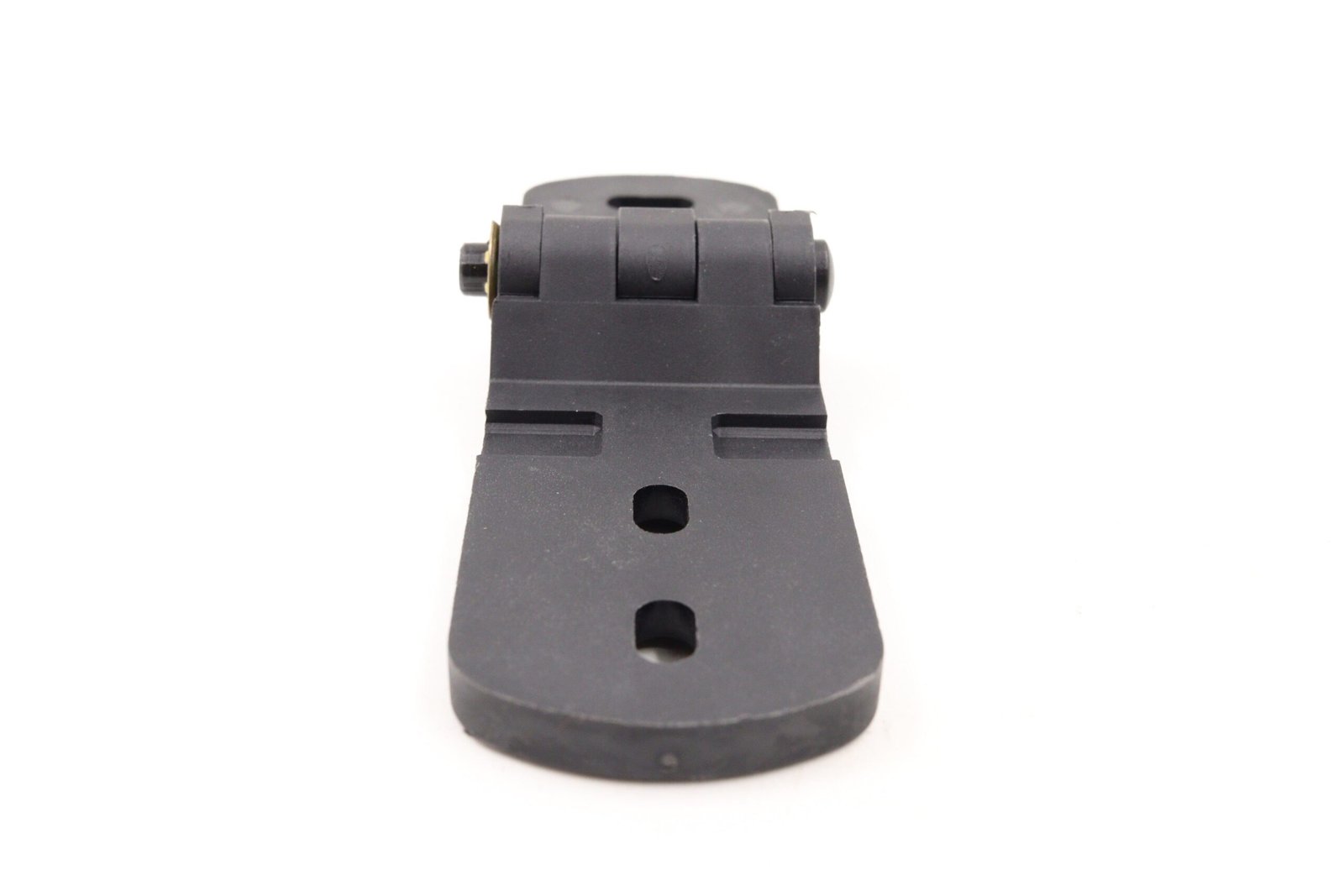

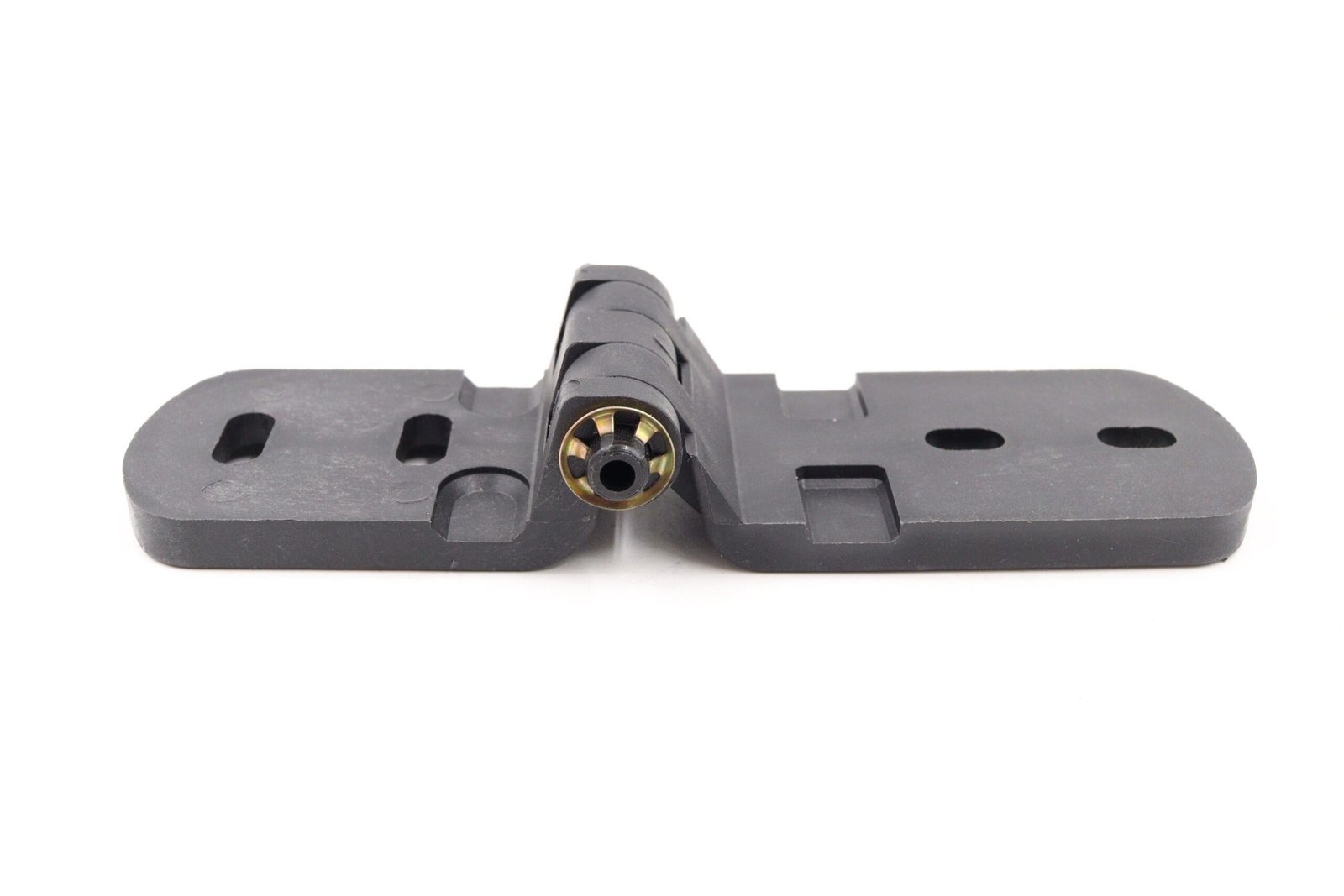

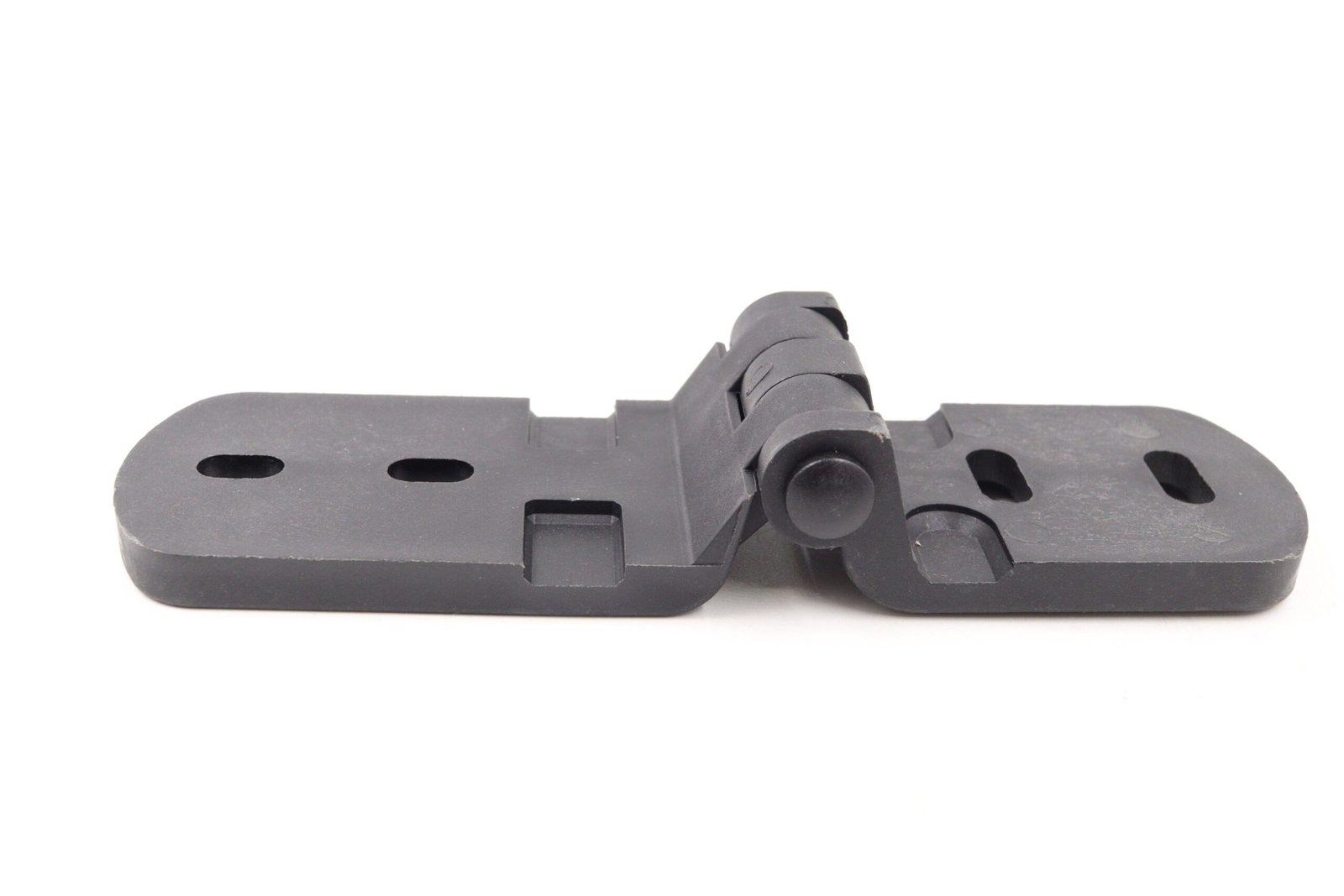

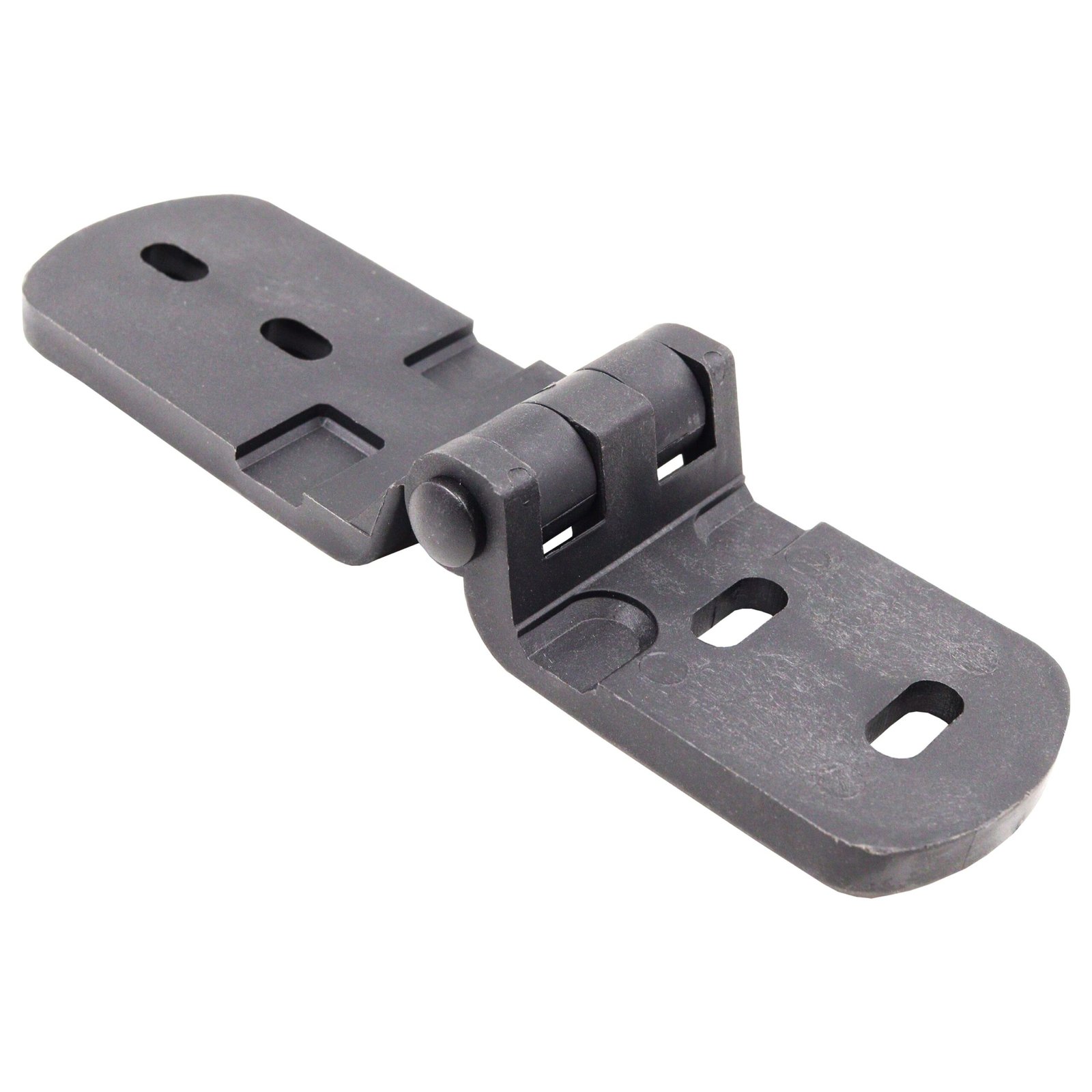

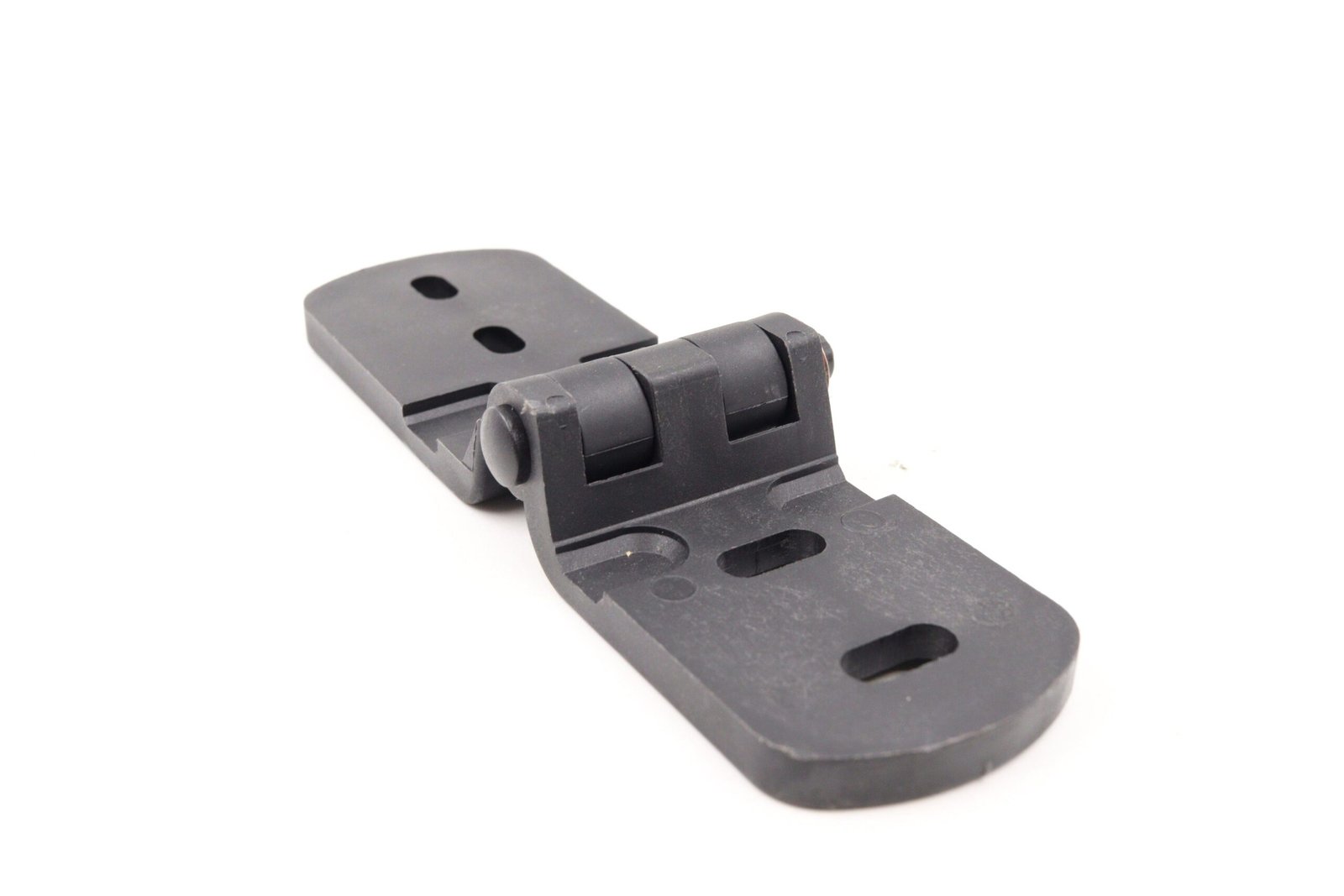

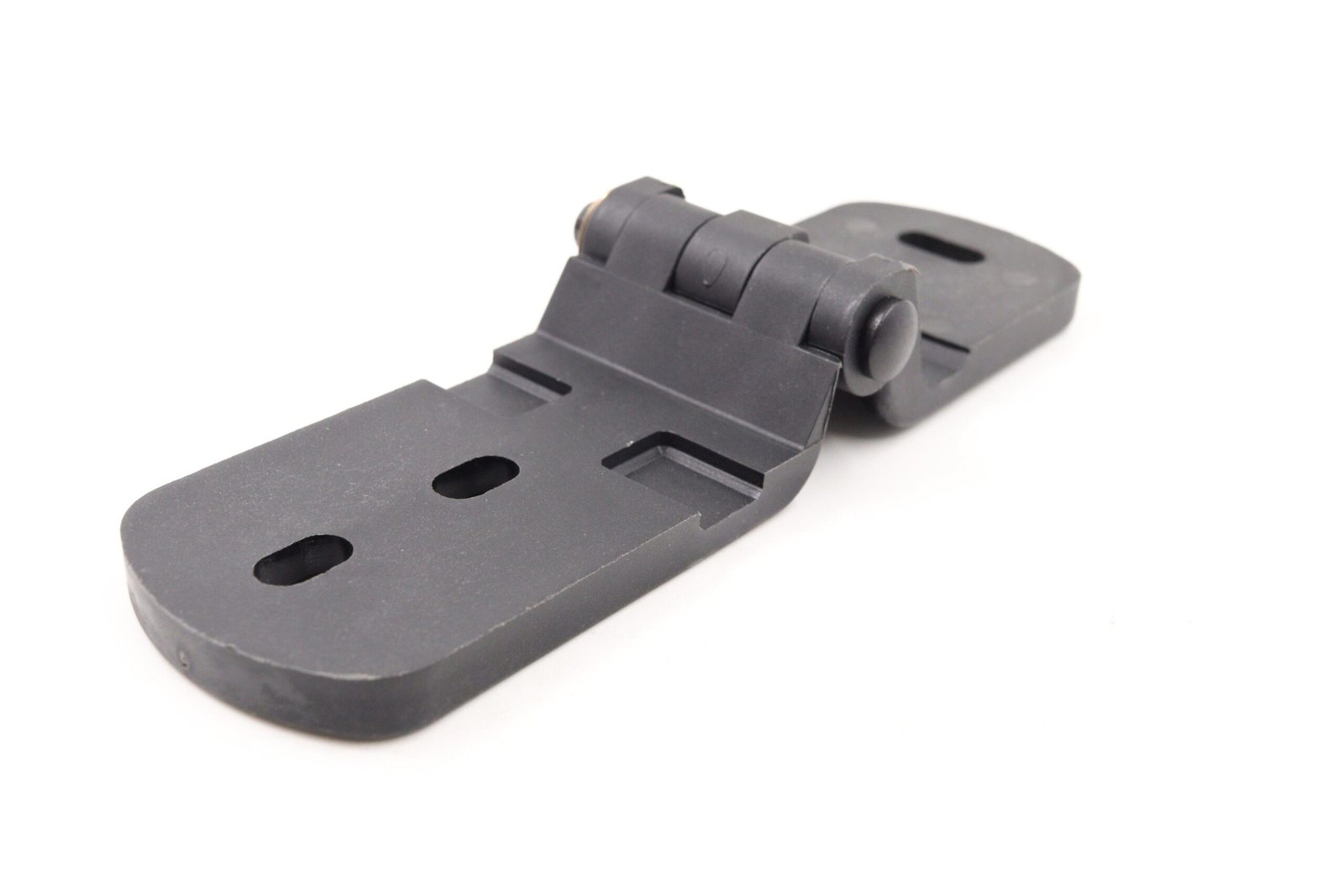

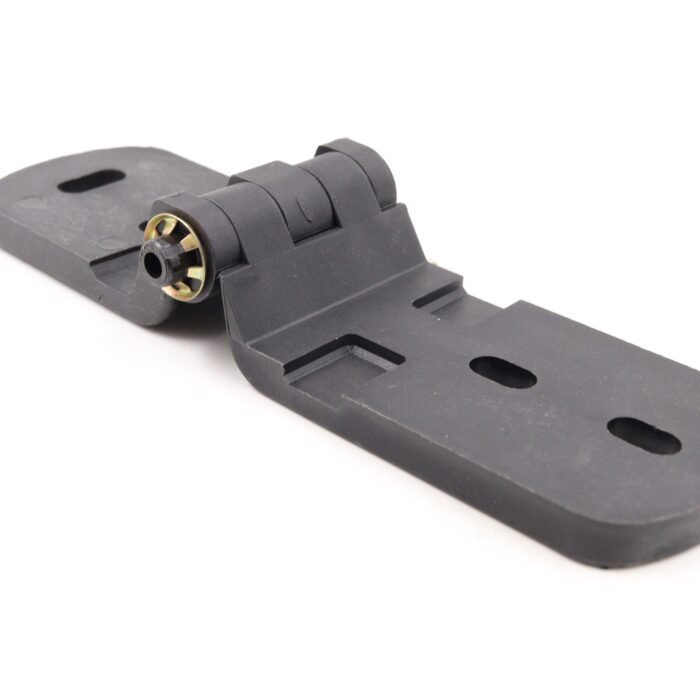

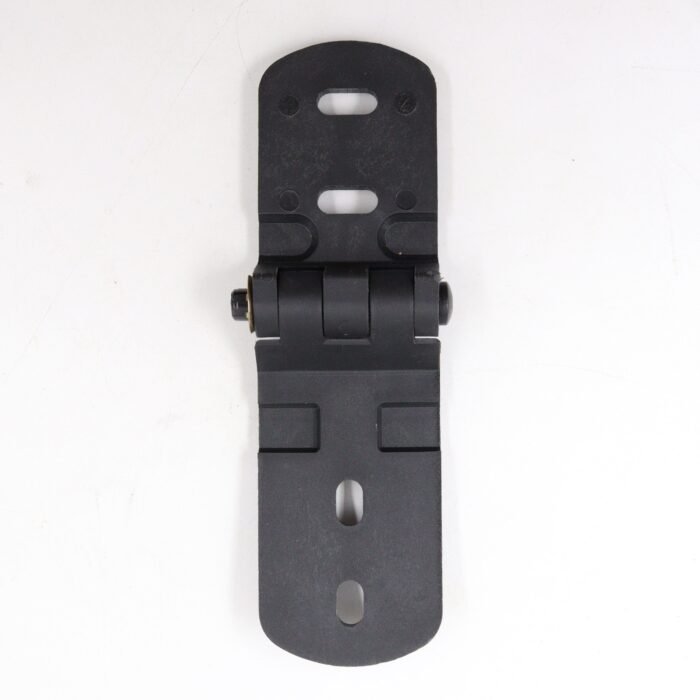

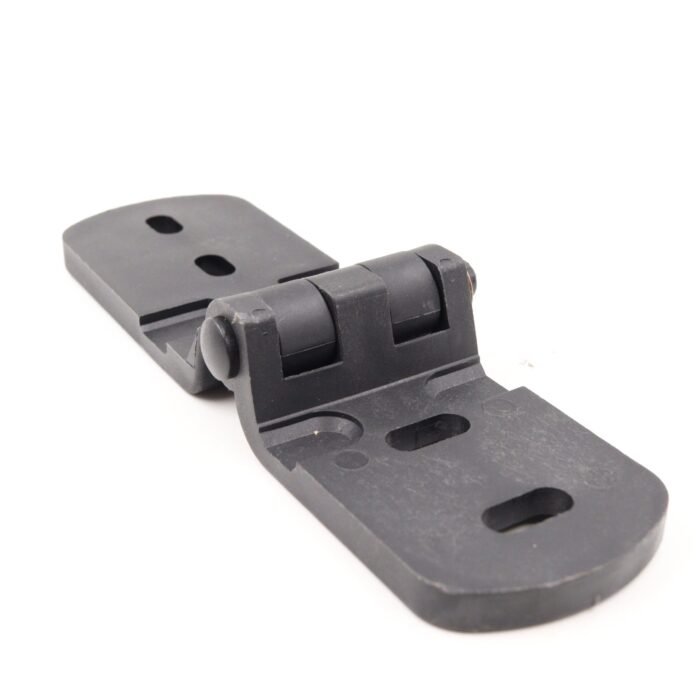

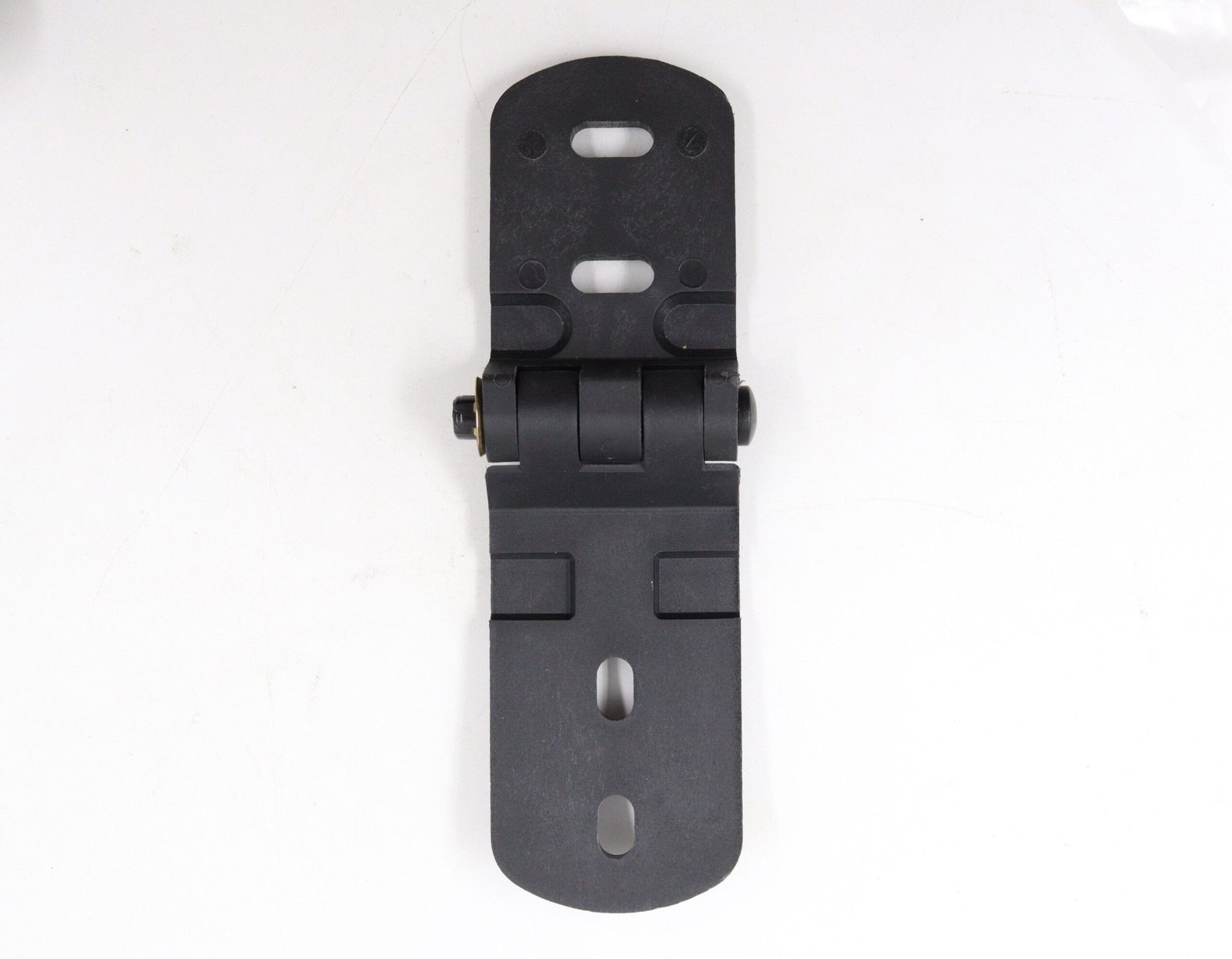

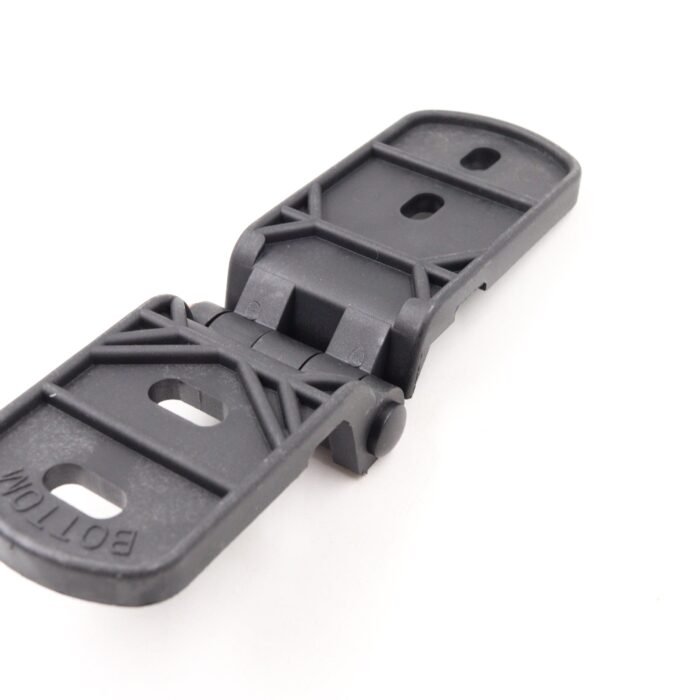

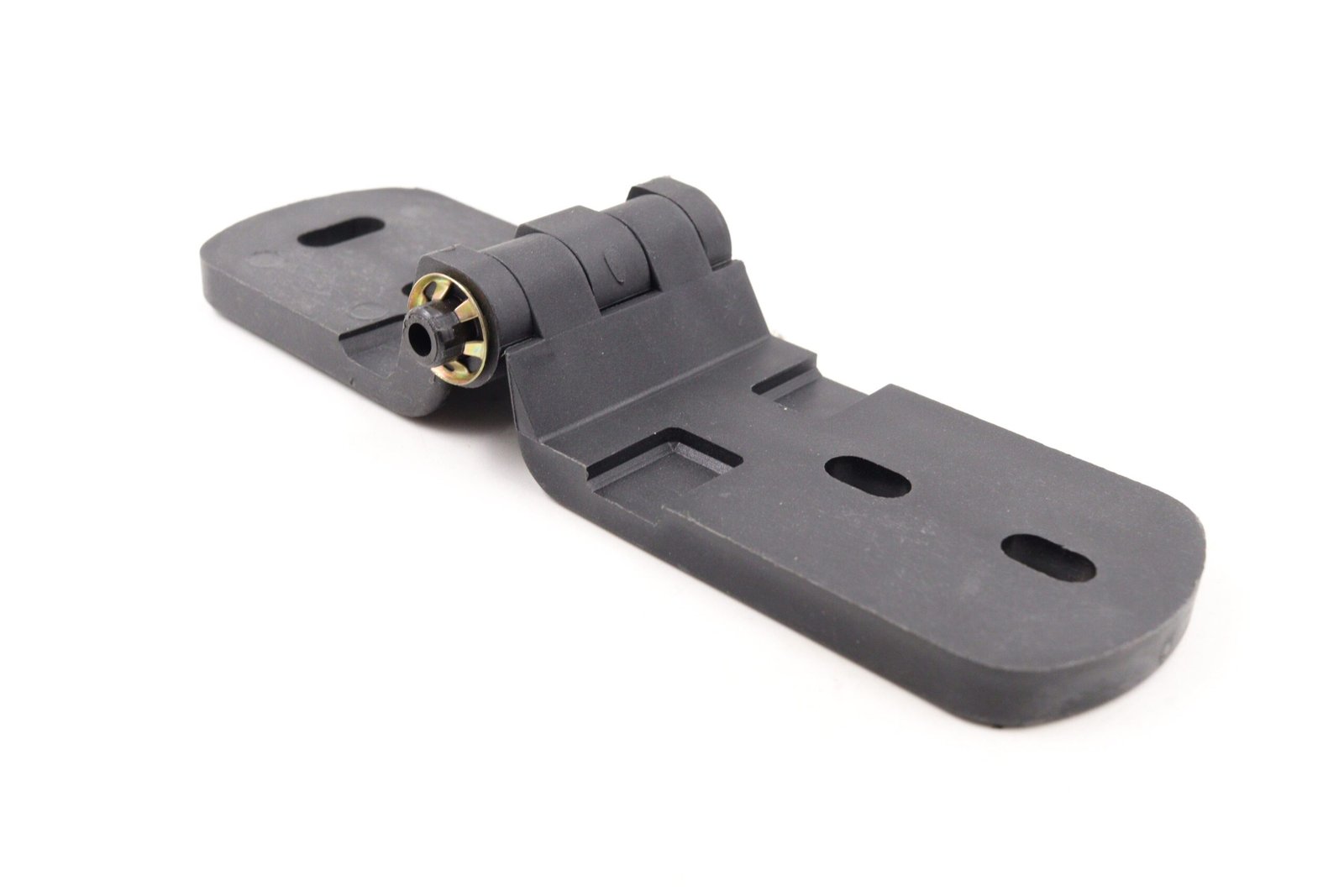

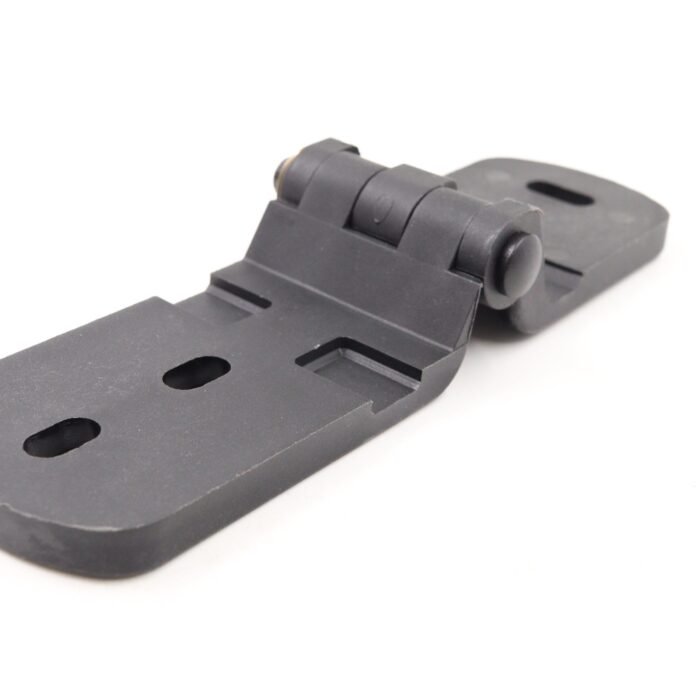

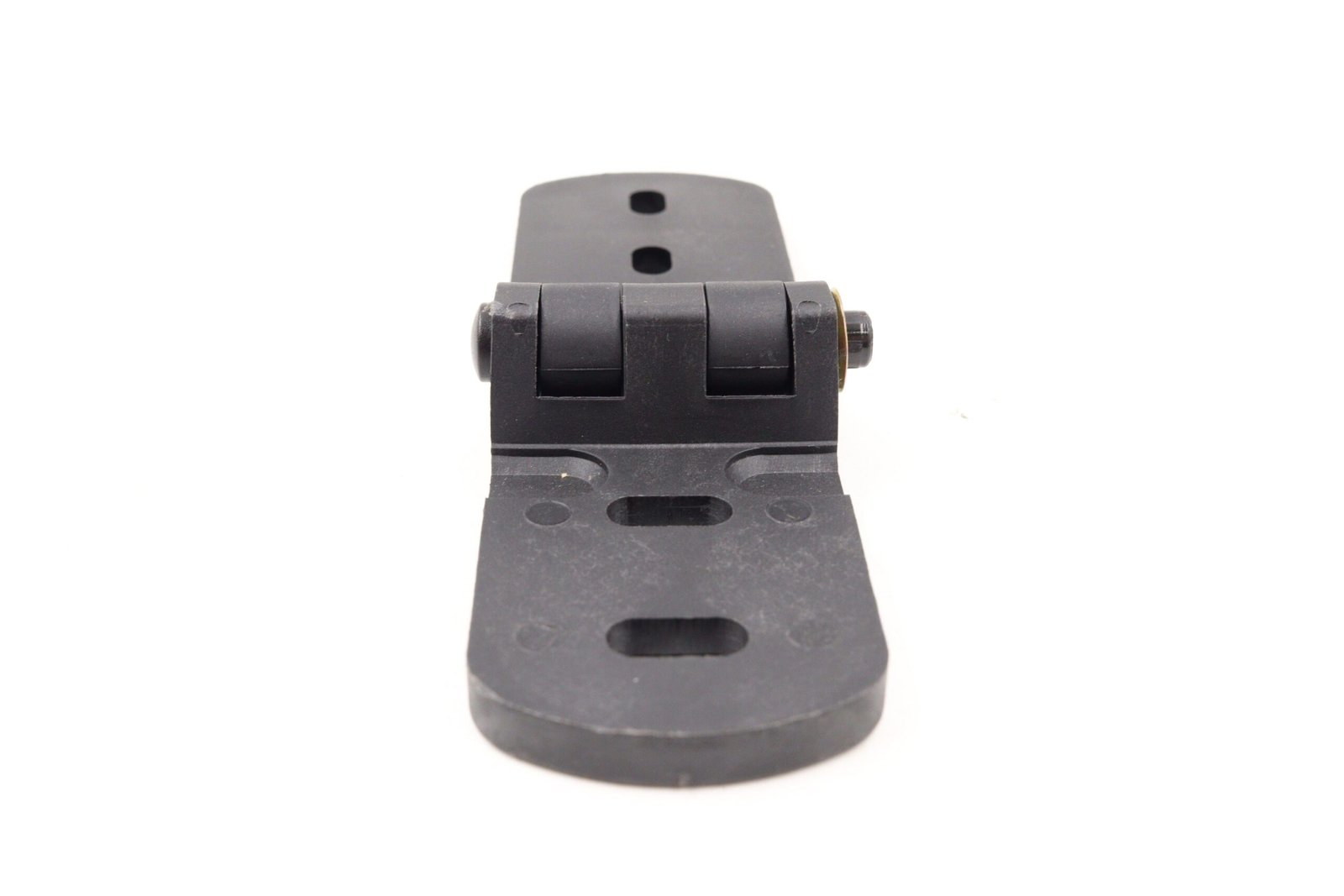

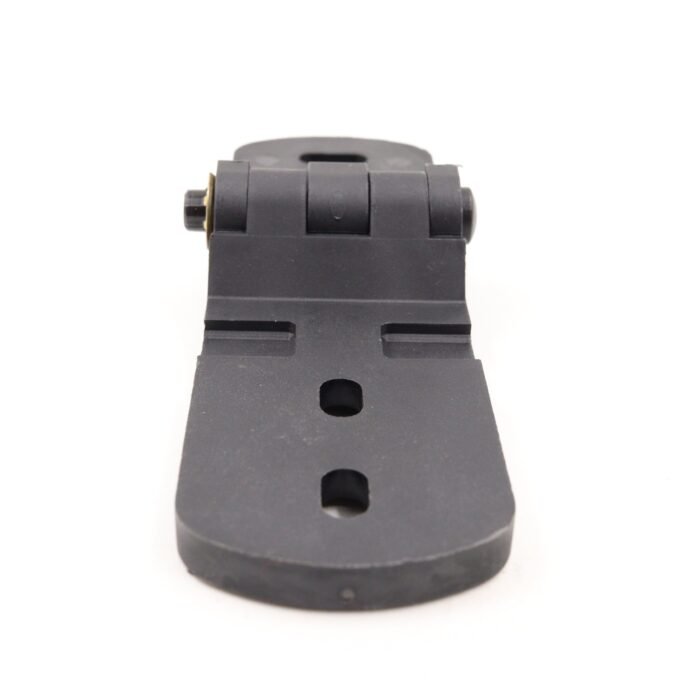

Steel-Line Garage Sectional/Panellift Door Nylon Hinge Middle

These Steel-Line middle hinges are used to connect panels along each of the internal vertical struts. These are the hinges that do not have rollers.

This is a replacement hinge designed for older Steel-Line sectional garage doors.

These hinges are embossed with a number 1, 2, 3, or 4, depending on which panel they belong to for the immediate left and right hinges. There are also centre hinges, which may have very small numbers stamped on them, but those numbers are not relevant for selecting the correct hinge.

Dimensions: 160mm long x 46mm wide

Please choose carefully. While hinges may look similar at first glance, the hole centres for the roller shaft differ by about 5-6mm between each panel. Fitting the wrong hinge will cause your door to bind or scrape along the front surface.
